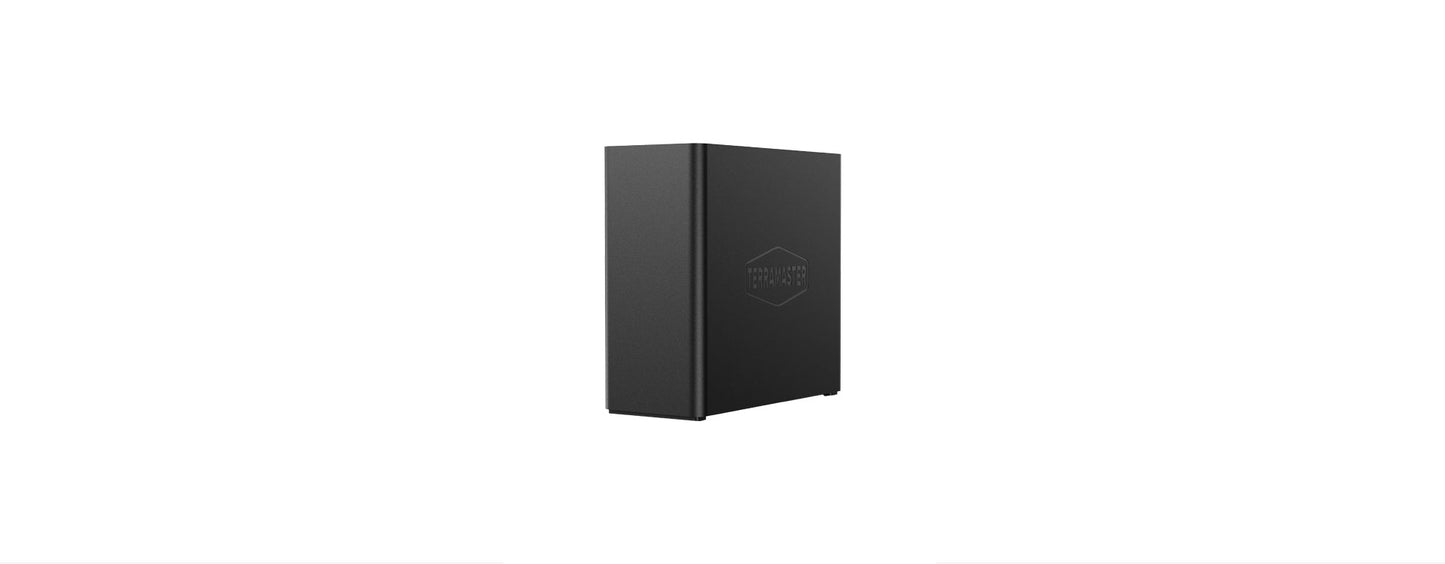

F4 SSD

F4 SSD

$399.99 USD
$399.99 USD
Sale Sold out
Shipping calculated at checkout.

All-Flash Silent Home Data Center

View full details

F4 SSD Specification

Specification
Processor
Processor Model Intel® N95
Processor Architecture x86 64-bit
Processor Frequency Max burst up to 3.4 GHz
CPU Single-Core Score /
Hardware Encryption Engine √
Hardware Transcoding Engine  H.264, H.265, MPEG-4, VC-1;maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60
Memory
System Memory 8 GB DDR5 non-ECC SODIMM
Pre-installed Memory Module 8 GB DDR5 non-ECC SODIMM (1x 8 GB)
Total Memory Slot Number 1 × DDR5 SODIMM
Maximum Supported Memory 32 GB DDR5 non-ECC SODIMM
Note TerraMaster reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
Disk Slot Number /
Compatible Drive types /
/
/
Maximum Internal Raw Storage Capacity 32 TB (8 TB x4) (Capacity may vary by RAID types)
Drive Hot Swap /
Note  Hard drive vendors will release their latest models of hard drives, and Maximum internal raw storage capacity may be adjusted accordingly.
The maximum single volume size is not directly related to the maximum raw capacity.
File System
Internal Drive Btrfs, EXT4
External Drive EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS

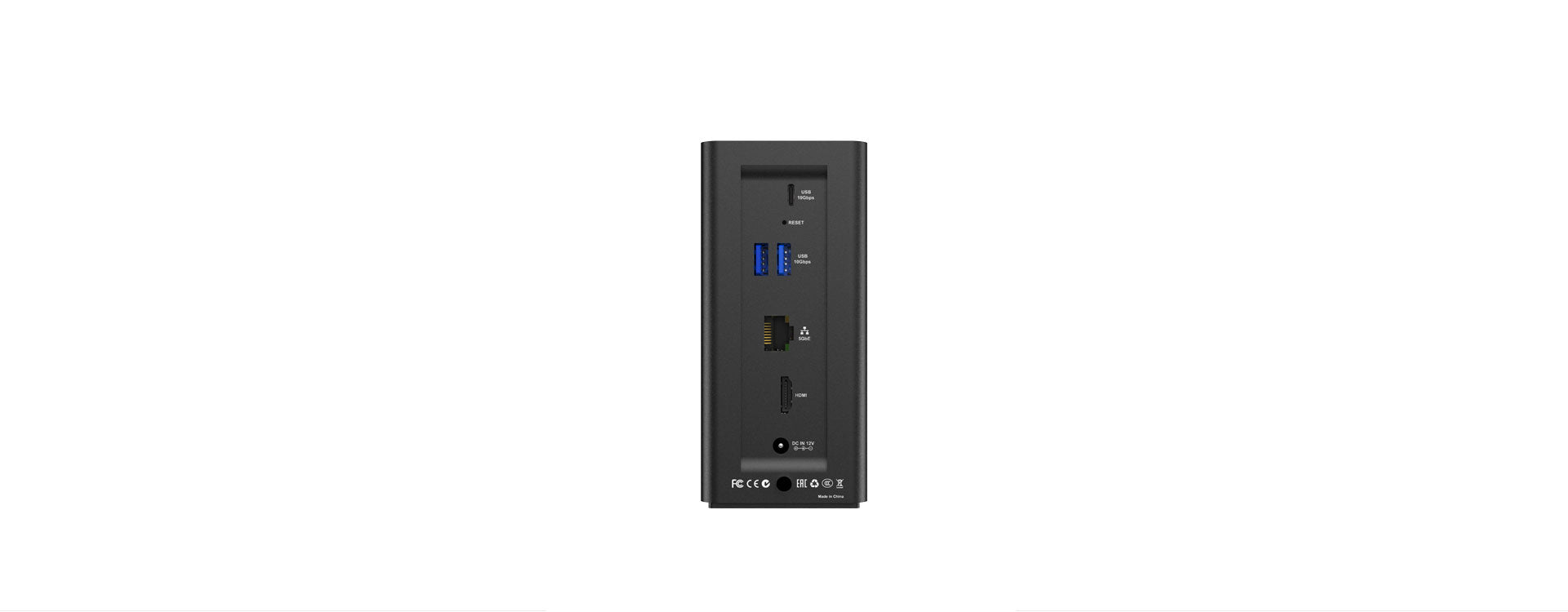

External Ports
RJ-45 1GbE Network Port /
RJ-45 2.5GbE Network Port /
RJ-45 5GbE Network Port 1
SFP+ 10GbE Network Port /
USB3.2 Host Port 3  x 10 Gbps（Type A x2 + Type C x1)
USB2.0 Host Port /
COM /
HDMI 1 x HDMI 2.b
VGA /
PCIe Slots /

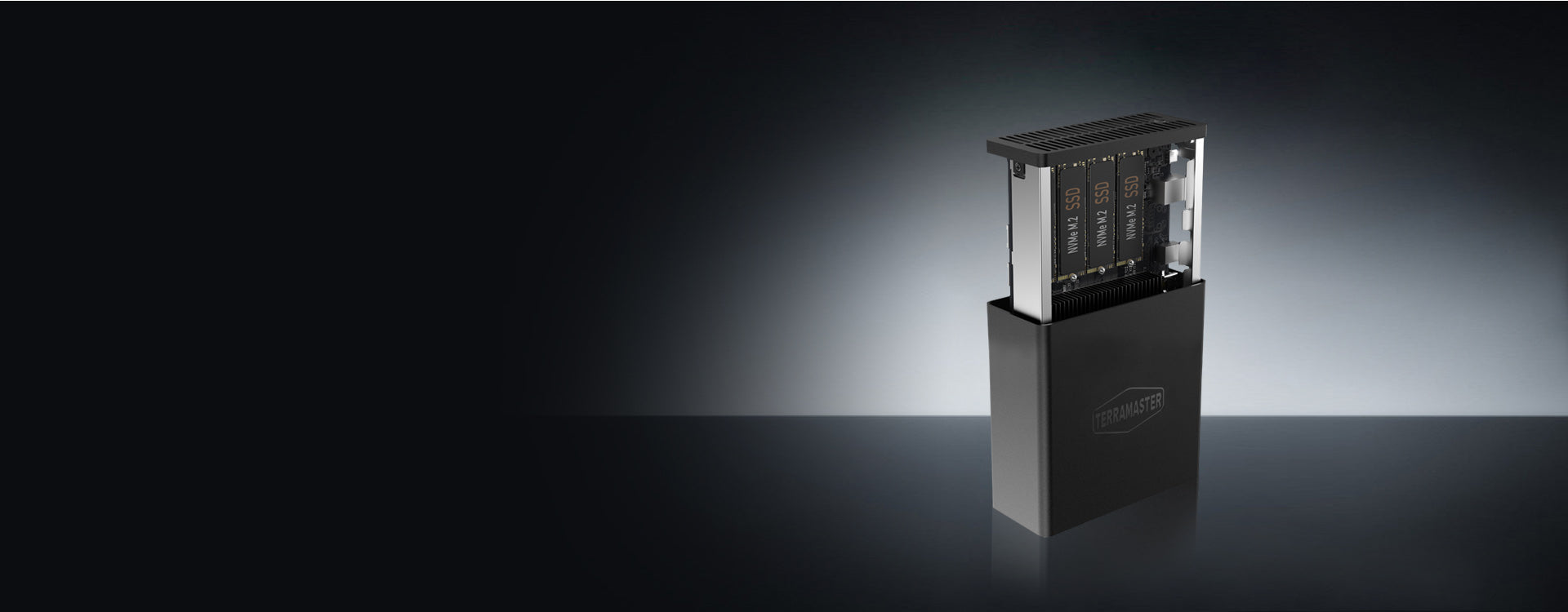

M.2 2280 NVMe Slot 2(PCIe 3.0 x2）+2(PCIe 3.0 x1)

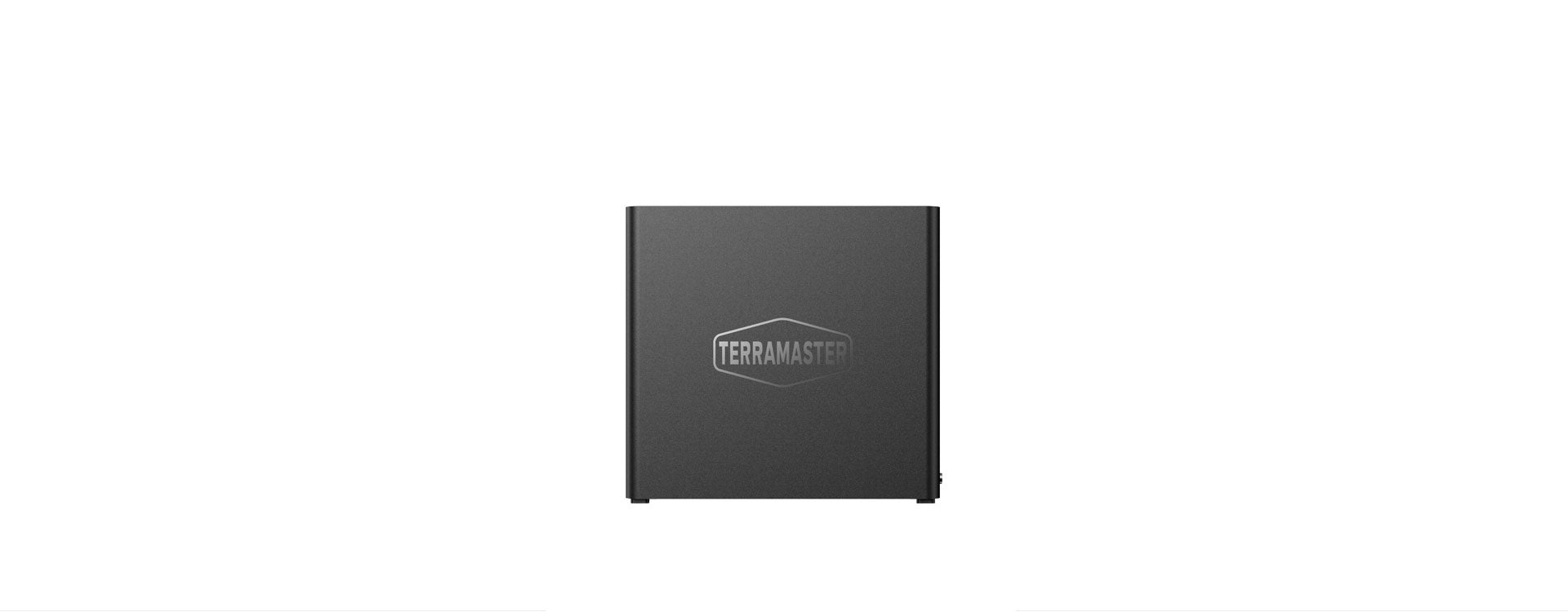

Appearance
Size (H*W*D)  138 x 60 x 140 mm
Packaging Size (H*W*D) 185 x 172 x 152 mm
Weight Net Weight: 0.6Kg , Gross Weight: 1.2 Kg
Others
System Fan 50 x 50 x 10mm  2PCS
Fan Mode Smart, High speed, Middle speed, Low speed
Noise Level 19.0 dB(A) (Using M.2 SSDs in standby mode; Test environment noise: 17.3dB(A); Test distance: 1m)
Power Supply 48 W
Redundancy Power Supply /
AC Input Voltage 100V - 240V AC
Current Frequency 50/60 Hz, Single frequency
Power Consumption 32.0 W(Fully loaded Seagate 2TB M.2 SSDs in read/write state)
8.0 W (Fully loaded Seagate 2TB M.2 SSDs in hibernation)
Limited warranty 2 years
Certificate FCC, CE, CCC, KC
Environment RoHS, WEEE
Temperature
Working Temperature 0°C  ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-5°F ~ 140°F)
Relative Humidity 5% ~ 95% RH
Package Contents
  Host unit (x1)
Power cord (x1)
Power Adapter(x1)
RJ-45 network cable (x1)
Quick Installation Guide (x1)
Limited Warranty Note(x1)
Screws (a few)
TOS Features
OS Supported
Supported Client OS Windows OS, Mac OS, Linux OS
Supported Web Browsers Google Chrome 97.0 or later, Mozilla Firefox 9.3, Apple Safari 12.1 ; Microsoft Edge 99.0.000 or later version.
Supported mobile OS iOS14.0, Android 10.0 or later version
Storage Management
Supported RAID Types TRAID, TRAID＋, Single, JBOD, RAID 0, RAID 1, RAID5, RAID 6, RAID 10
Maximum Internal Volume Number 128
Maximum iSCSI Target 64
Maximum iSCSI LUN 64
Volume Expansion with Larger HDDs TRAID, TRAID＋, RAID 5, RAID 6, RAID 10
Volume Expansion by Adding a HDD /
RAID Migration √
SSD Cache √
Hot Spare √
SSD TRIM √
Hard Drive S.M.A.R.T. √
Seagate IHM √
NVRAM write cache(BBU-protected) /
Shared Folder Snapshot √
LUN Snapshot √
File Services
File Protocol SMB/AFP/NFS/FTP/SFTP/WebDAV
Maximum Concurrent SMB/AFP/FTP/SFTP Connections 100
Windows Access Control List (ACL) Integration √
NFS Kerberos Authentication √
Account & Shared Folder
Maximum local user's account number 128
Maximum local group number 128
Maximum shared folders number 128
Maximum shared folders syncing tasks 8
Backup
Rsync Backup √
Duple Backup √
Centralized Backup √
Snapshot √
USB  Backup √
Cloud Sync √
Time Machine Backup √
File System Snapshot √
TFM Backup √
Networking
TCP/IP IPv4/IPv6
Protocols CIFS/SMB, NFS, FTP, SFTP, HTTPS, SSH, iSCSI, SNMP
Link Aggregation √
DLNA Compliance √
VPN Client √
VPN Server √
Proxy Client √
Proxy Server /
UPnP/Bonjour Discovery √
TNAS.online Remote Access √
DDNS √
Access Right Management
Batch users creation /
Import/Export users √
User Quota Management √
Local user access control for CIFS/SAMBA and FTP √
Domain Authentication
AD Domain √
LDAP Client √
LDAP Server /
Security
Firewall Protection √
Account Auto-block Protection √
AES Shared Folder Encryption √
Importable SSL certificate √
Instant Alert via email, Desktop Notification, Beep √
RSA 2048 Encryption（TOS 6.0） √
PAM (Pluggable Authentication Modules) √
OTP Authentication（TOS 6.0） √
HyperLock File System（TOS 6.0） √
Power Management
Power Resume √
Scheduled Power On/Off √
Wake up On LAN（WOL） √
UPS Supported √
Administration
Multi-window, Multi-task System Management √
Custom Desktop √
Control Panel √
Resource Monitor √
Syslog √
OS UI Language English, German, French, Spanish, Italian, Magyar, Chinese, Japanese, Korean, Turkish, Portuguese, Russian
Applications
Application Center √
iSCSI Target √

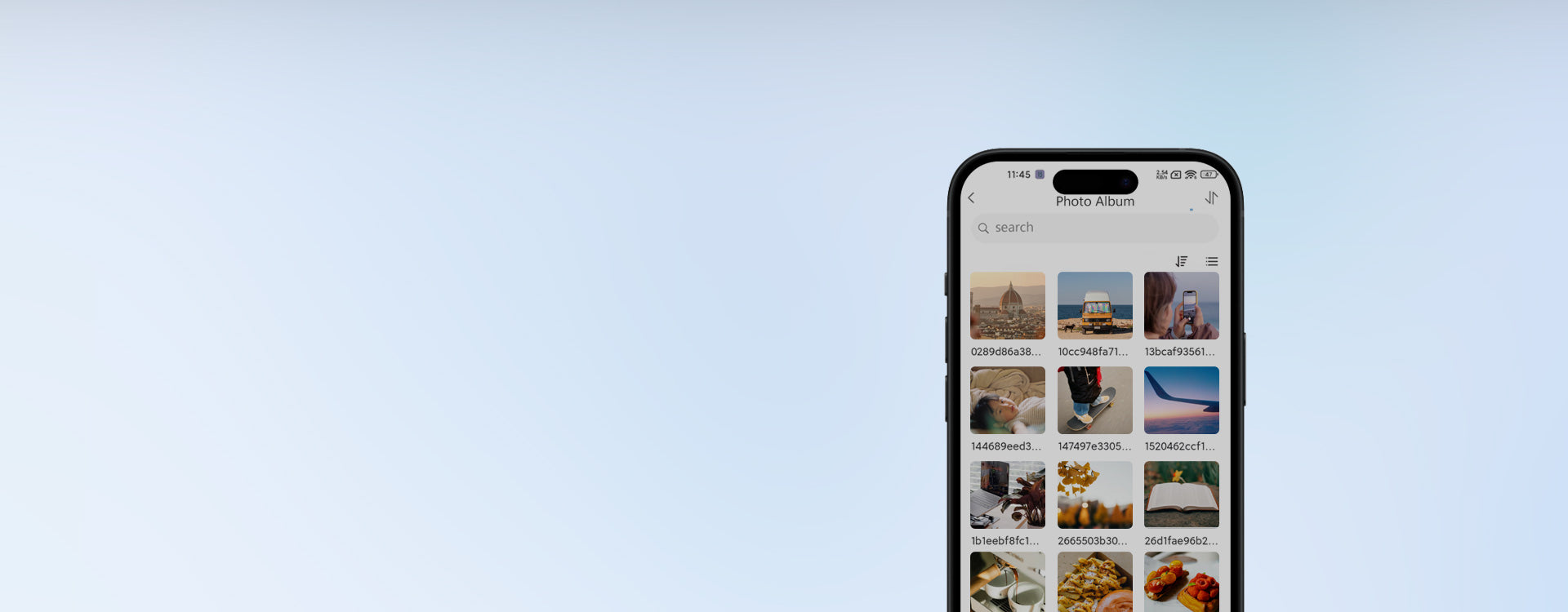

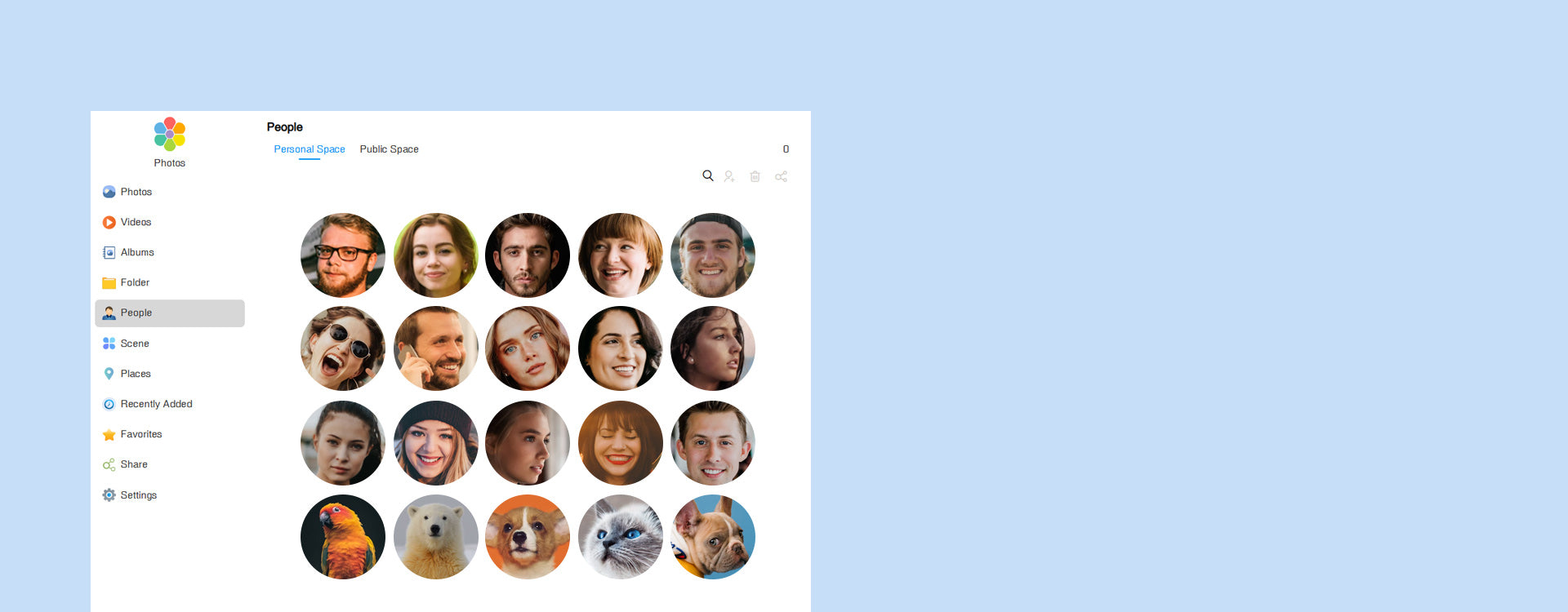

Terra Photos √
TerraSync √
Duple Backup √
CloudSync √
Centralized Backup √
USB Backup √
VPN Server √
Transmission √
qBittorrent √
Aria 2 √
Terra Search √
Deduplication √
Web Server √
Clam Antivirus √
EMBY √
Multi Media Server √
Plex Media Server √
Docker Manager √
Snapshot √
